Complete Guide to Rest and Rest Seats in Removable Partial Dentures

Medi Study Go

Introduction

In the field of prosthodontics, the success of a removable partial denture (RPD) largely depends on its design elements. Among these critical components, rest and rest seats stand as fundamental structures that significantly impact the longevity, functionality, and patient comfort of partial dentures. Whether you're a dental student preparing for NEET MDS examinations or a practicing professional looking to refresh your knowledge, understanding these components thoroughly is essential for clinical excellence.

Quick Navigation to In-Depth Resources

What Are Rest and Rest Seats?

In removable partial denture design, a rest is defined as a rigid extension of a removable dental prosthesis that prevents movement toward the mucosa and transmits functional forces to the teeth. The rest seat, on the other hand, is a prepared recess in a tooth or restoration specifically created to receive the occlusal, incisal, cingulum, or lingual rest.

These components work together to fulfill several critical functions in partial denture design:

Support the prosthesis against vertical movement
Transfer occlusal forces to the abutment teeth
Stabilize the denture against horizontal movement
Protect the periodontium by preventing impingement on soft tissues
Maintain proper positioning of components like clasps

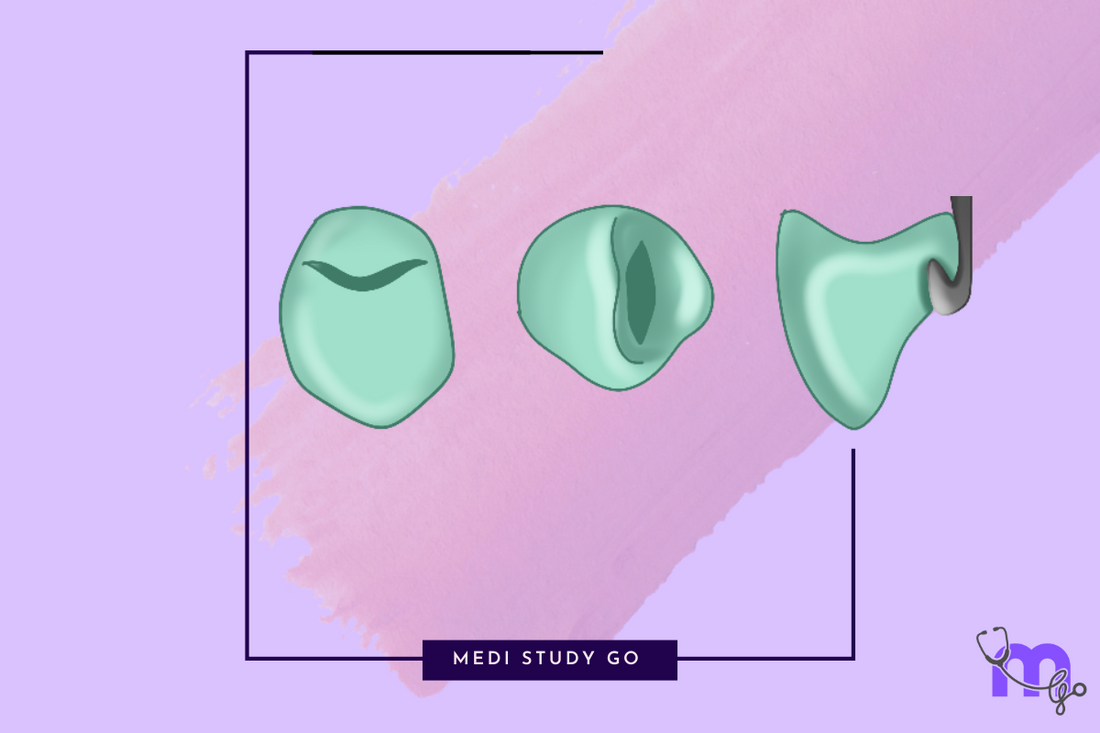

Types of Rest Seats

Rest seats can be classified based on their location on the tooth:

1. Occlusal Rest Seats

Occlusal rest seats are the most common type, prepared on the occlusal surfaces of posterior teeth. Ideally, these rest seats should be:

2.5 mm wide buccolingually
1.5 mm deep at the marginal ridge
Spoon-shaped with a rounded floor
Designed with an angle less than 90° at the marginal ridge to prevent food impaction

When properly prepared, occlusal rest seats direct forces along the long axis of the tooth, minimizing harmful lateral forces that could lead to periodontal damage.

2. Incisal Rest Seats

Incisal rest seats are typically prepared on anterior teeth, particularly canines. The preparation involves:

Creating a notch on the incisal edge
Approximately 1.5 mm depth
2.5 mm width mesiodistally
Rounded internal line angles to prevent stress concentration

While less common than occlusal rests, incisal rests play a crucial role in anterior partial denture designs, especially in Kennedy Class IV cases.

3. Cingulum Rest Seats

Cingulum rest seats are prepared on the lingual surface of anterior teeth, typically on the cingulum area. These rest seats:

Provide better esthetics compared to incisal rests
Require a well-defined cingulum for adequate preparation
Direct forces more favorably along the long axis of the tooth
Typically have a depth of 1-1.5 mm

4. Lingual Rest Seats

Lingual rest seats are modifications of cingulum rests that extend onto the lingual surface of anterior teeth. These are particularly useful when:

The cingulum is poorly defined
Additional support is needed
Better force distribution is required

Preparation of Rest Seats

Proper preparation of rest seats is crucial for the success of removable partial dentures. Each type of rest seat requires specific preparation techniques:

Occlusal Rest Seat Preparation

Initial Preparation: Begin with a round diamond bur to create the general outline of the rest seat.
Depth Establishment: Create a preparation approximately 1.5 mm deep at the marginal ridge, gradually becoming shallower toward the central groove.
Spoon Shape Creation: Form a rounded, spoon-shaped depression with no sharp line angles.
Marginal Ridge Reduction: Ensure the marginal ridge is reduced to create an angle less than 90° with the proximal surface.
Finishing: Smooth all surfaces to prevent irritation and ensure comfort.

The preparation should be sufficiently wide (about 2.5 mm) to provide adequate strength to the rest while avoiding interference with cuspal movements.

Incisal Rest Seat Preparation

Location Selection: Typically prepared on the mesial or distal incisal edge of canines or incisors.
Initial Preparation: Use a small round bur to create a notch.
Depth and Width: Establish a depth of approximately 1.5 mm and width of 2.5 mm.
Contour Refinement: Create a rounded, concave shape that blends with the tooth contour.
Polishing: Smooth all surfaces to prevent plaque accumulation.

Cingulum Rest Seat Preparation

Assessment: Evaluate the prominence of the cingulum.
Initial Preparation: Use a round diamond bur to create a concavity in the cingulum area.
Depth Control: Maintain a depth of 1-1.5 mm while preserving enamel thickness.
Shape Formation: Create a rounded depression that follows the contour of the tooth.
Finishing: Polish the preparation to ensure a smooth surface.

Clinical Considerations for Rest Seats

Several factors must be considered when planning and preparing rest seats:

1. Anatomical Considerations

Tooth Morphology: The natural anatomy of the tooth influences the design and placement of rest seats.
Occlusal Clearance: Adequate space must exist for the rest without interfering with occlusion.
Periodontal Health: The condition of the periodontal tissues affects the ability of abutment teeth to bear occlusal loads.

2. Material Considerations

Enamel Thickness: Maintaining adequate enamel thickness prevents pulpal exposure and sensitivity.
Restorative Materials: Different materials (amalgam, composite, porcelain) require specific preparation techniques.
Existing Restorations: May need modification or replacement to accommodate rest seats.

3. Biomechanical Considerations

Force Direction: Rest seats should direct forces along the long axis of the tooth.
Retention Requirements: The position of rest seats influences clasp design and retention.
Stability Needs: Properly placed rest seats enhance denture stability during function.

Rest Seats on Crowns and Existing Restorations

When preparing rest seats on crowns or existing restorations, special considerations apply:

Rest Seats on Metal Crowns

Design the crown with a built-in rest seat during fabrication.
Ensure adequate metal thickness to prevent deformation.
Contour the rest seat according to standard dimensions.

Rest Seats on Porcelain Crowns

Plan rest seat location during crown design to avoid weakening porcelain.
Consider metal occlusal surfaces or rest seats in metal for high-stress areas.
If preparing rest seats on existing porcelain crowns, use diamond burs with copious water to prevent fracture.

Rest Seats on Composite Restorations

Evaluate the strength and integrity of the existing restoration.
Prepare rest seats with care to avoid undermining the restoration.
Consider replacing inadequate restorations with more durable materials before rest seat preparation.

Special Types of Rest Seats

Embrasure Rest Seats

Embrasure rest seats are prepared across the contact area between two adjacent teeth. These are particularly useful when:

Individual teeth cannot bear the full occlusal load
Better force distribution is needed
Stabilizing cross-arch forces are required

The preparation involves creating complementary rest seats on the proximal surfaces of adjacent teeth, forming a unified rest area across the embrasure.

Internal Rest Seats

Internal rest seats are prepared within the body of a tooth, often as part of another restoration like an inlay or onlay. These offer excellent esthetics and are particularly useful for anterior teeth where visible rests would be undesirable.

Functions of Rest and Rest Seats in RPD

Rest and rest seats serve multiple critical functions in removable partial dentures:

1. Support Function

The primary function of rests is to provide vertical support for the denture. By transmitting occlusal forces to the abutment teeth, rests prevent the denture from impinging on gingival tissues, which would cause trauma and potential bone resorption.

2. Stabilization Function

Properly designed rest seats help stabilize the denture against horizontal and rotational movements. This stability is crucial for:

Patient comfort
Efficient mastication
Prevention of trauma to oral tissues
Maintenance of clasp position

3. Reciprocation Function

Rests work in conjunction with other components like clasps to provide reciprocal forces. When a retentive clasp flexes during insertion and removal, the rest on the opposite side of the tooth provides a reciprocal force to prevent harmful lateral pressure.

4. Stress Distribution Function

By strategically placing rest seats, occlusal forces can be distributed across multiple teeth, preventing overloading of any single abutment. This distribution is essential for preserving the health of supporting structures.

5. Indirect Retention Function

In certain denture designs, particularly distal extension cases, rest seats can contribute to indirect retention by preventing the distal end of the denture from rotating downward around the fulcrum line.

Common Problems and Solutions

Inadequate Rest Seat Depth

Problem: Insufficient depth results in poor support and potential denture movement. Solution: Prepare rest seats to proper depth (1.5 mm at marginal ridge), ensuring gradual transition to central groove.

Improper Rest Seat Contour

Problem: Sharp line angles or improper contour can lead to stress concentration and potential tooth fracture.

Solution: Create spoon-shaped rest seats with rounded internal line angles and smooth transitions.

Rest Seat Placement Issues

Problem: Poorly positioned rest seats may result in ineffective force distribution.

Solution: Position rest seats to direct forces along the long axis of the tooth while maintaining proper occlusion.

Esthetic Concerns

Problem: Visible rests, particularly on anterior teeth, may be esthetically unacceptable. Solution: Consider alternative rest designs like lingual or internal rest seats for esthetic zones.

Examination Tips for NEET MDS and Dental Students

For students preparing for NEET MDS or other dental examinations, certain aspects of rest and rest seats are frequently tested:

Definition and Functions: Know the precise definitions and multiple functions of rests and rest seats.
Dimensions: Memorize the recommended dimensions for different types of rest seats (width, depth, etc.).
Preparation Principles: Understand the biomechanical principles behind rest seat preparation.
Variations: Be familiar with special types like embrasure rests and their indications.
Clinical Cases: Practice identifying appropriate rest seat designs for various clinical scenarios.

Reviewing NEET previous year question papers reveals that questions on rest seats often focus on their dimensions, preparation techniques, and biomechanical principles.

Revision Tips for Quick Learning

For effective last minute revision of rest and rest seats concepts:

Create flashcards with key definitions, dimensions, and functions.
Use mnemonic devices to remember different types of rest seats and their characteristics.
Practice drawing rest seat preparations with proper dimensions.
Review clinical images of well-prepared rest seats to recognize proper design.
Take NEET mock tests focusing on prosthodontics sections.

Conclusion

Rest and rest seats are fundamental components of removable partial denture design that significantly impact the success of the prosthesis. Understanding their types, preparation techniques, and functions is essential for dental students and practitioners alike. By mastering these concepts, you'll be better equipped to design and deliver partial dentures that provide optimal function, comfort, and longevity for your patients.

Whether you're preparing for NEET MDS examinations or enhancing your clinical skills, a thorough understanding of rest and rest seats will serve as a solid foundation for excellence in removable prosthodontics.
